HKXYTECH Rosemount Emerson AMS Trex Device Communicator TREXLFPKLWS3S
TREXLFPKLWS3S
100% New & Original
Need a Quote?Detailed Information
HKXYTECH Rosemount Emerson AMS Trex Device Communicator TREXLFPKLWS3S
Weight Approximately 2.9 lbs (1330 grams) Microprocessor 800 MHZ ARM Cortex A8/NXP Memory Internal Flash 2 GB NAND and 32 GB extended flash RAM 512 MB DDR3 SDRAM Display 5.7 in (14.5 cm) color VGA resistive touchscreen Battery Operating Time 8+ hours of typical use Operating Temperature -20 to 55°C (-4 to 122°F) Enclosure Rating IP54 Shock Tested to survive a 1-meter drop test onto concrete
Emerson AMS Trex Device Communicator TREXLFPKLWS3S
Features
Enables HART or Fieldbus module communications
7in (14.5 cm) color VGA resistive touchscreen display
Configure and test valves inline
2 GB NAND and 32 GB extended flash
Rechargeable lithium-ion power module
800 MHz ARM Cortex A8 / NXP
-4 to 131°F (-20 to 55°C) operating temp
IP54 environmental rating
The Emerson AMS Trex device communicator is designed for comfortable, one-handed, all-day operation in the field. It is packaged in an evenly-balanced form factor with a rugged hand strap so it is easy to hold, even when working in tight spaces. It comes standard with 32 GB of application memory, providing plenty of space to customize with the apps of your choice. With built-in Bluetooth, USB, and WiFi connectivity, data can be moved to and from the communicator using whichever connectivity option is most convenient.
Emerson AMS Trex Device Communicator TREXLFPKLWS3S

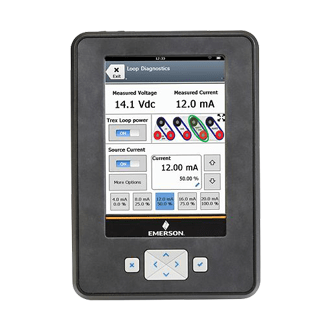

The Trex communicator features a 5.7 inch resistive touchscreen display that is easy to use with bulky work gloves. The adjustable backlit screen can be adjusted to save power and adapt to dark environments or bright sunlight, ensuring a crisp display that is always easy to read.
Improve reliability with the AMS Trex Device Communicator TREXLFPKLWS3S. Increase productivity in the field with your Trex unit by doing more types of tasks. Easily solve complex device issues without the need for other specialized tools. The Trex communicator is designed to withstand the harsh conditions in and around manufacturing facilities and is safely-rated, so it can go anywhere you can go. Rely on Trex to deliver results and keep your field assets reliable.
Ordering Codes:
| AMS Trex Device Communicator | TREXLFPKLWS3S |
| Model | Product Description |
| TREX | Base Trex Platform (1) |
| Code | Communication Module |
| C | Device Communicator communication module |
| L | Device Communicator Plus communication module(2) |
| Code | Applications |
| H | HART Application |
| F | HART + Foundation Fieldbus Applications(3) |
| Code | Power Module Type |
| P | Rechargeable Li-Ion Power Module |
| Code | Product Certifications |
| KL | ATEX, CSA (US/Canada) and IECEx Intrinsically Safe (includes FISCO as applicable) |
| NA | No Approval |
| Code | Radio Options |
| W | Wireless |
| 9 | None |
| Code | Support |
| S1 | Standard Support (1 Year)(6) |
| S3 | Standard Support (3 Year)(6) |
| P1 | Premium Support (1 Year)( |
| P3 | Premium Support (3 Year)( |
| Code | Carrying Case |
| S | Carrying Case |
| TREXLFPKLWS3S | TREXLHPNAWS1S | TREXCFPNAWS1S | TREXLFPNAWS1S |
| TREXCHPNAWS3S | TREXLHPNAWS3S | TREXCFPNAWS3S | TREXLFPNAWS3S |
| TREXCHPNAWP1S | TREXLHPNAWP1S | TREXCFPNAWP1S | TREXLFPNAWP1S |
| TREXCHPNAWP3S | TREXLHPNAWP3S | TREXCFPNAWP3S | TREXLFPNAWP3S |
| TREXCHPNA9S1S | TREXLHPNA9S1S | TREXCFPNA9S1S | TREXLFPNA9S1S |
| TREXCHPNA9S3S | TREXLHPNA9S3S | TREXCFPNA9S3S | TREXLFPNA9S3S |
| TREXCHPNA9P1S | TREXLHPNA9P1S | TREXCFPNA9P1S | TREXLFPNA9P1S |
| TREXCHPNA9P3S | TREXLHPNA9P3S | TREXCFPNA9P3S | TREXLFPNA9P3S |
| TREXCHPKLWS1S | TREXLHPKLWS1S | TREXCFPKLWS1S | TREXLFPKLWS1S |
| TREXCHPKLWS3S | TREXLHPKLWS3S | TREXCFPKLWS3S | TREXLFPKLWS3 |
| TREXCHPKLWP1S | TREXLHPKLWP1S | TREXCFPKLWP1S | TREXLFPKLWP1S |
| TREXCHPKLWP3S | TREXLHPKLWP3S | TREXCFPKLWP3S | TREXLFPKLWP3S |
| TREXCHPKL9S1S | TREXLHPKL9S1S | TREXCFPKL9S1S | TREXLFPKL9S1S |
| TREXCHPKL9S3S | TREXLHPKL9S3S | TREXCFPKL9S3S | TREXLFPKL9S3S |
| TREXCHPKL9P1S | TREXLHPKL9P1S | TREXCFPKL9P1S | TREXLFPKL9P1S |
| TREXCHPKL9P3S | TREXLHPKL9P3S | TREXCFPKL9P3S | TREXLFPKLWS3S |
Spare parts codes :
| TREX-0002-1211 | Rechargeable Li-Ion Power Module |
| TREX-0002-3611 | Rechargeable Li-Ion Power Module (with 3 years premium coverage)(2) |
| TREX-0003-0011 | AC Adapter (includes US, EU, UK, AU outlet plugs) |
| TREX-0003-0022 | DC Adapter (12v vehicle accessory outlet) |
| TREX-0003-0002 | AC Outlet Plugs (replacement set includes US, EU, UK, AU) |
| TREX-FFPA-0001 | Foundation Fieldbus Power Plug |
| TREX-0004-0001 | Lead Set with connectors |
| TREX-0005-0002 | Hand Strap (replacement set of 2) |
| TREX-0005-0011 | Carrying Case (includes hand & shoulder straps) |
| TREX-0005-0009 | Shoulder Strap (replacement for use with carrying case) |
| TREX-0005-0004 | Magnetic Hanger |
| TREX-0004-0002 | USB cable (USB to micro USB) |
| TREX-PMDC-1211 | Device Communicator communication module(3) |
| TREX-PMDC-3611 | Device Communicator communication module (with 3 years premium coverage) |
| TREX-PMDP-1211 | Device Communicator Plus communication module(3) |
| REX-PMDP-3611 | Device Communicator Plus communication module (with 3 years premium coverage)(2)(3) |
| TREX-0012-0011 | Stand (replacement integral to communication module)( |
| TREX-0045-0001 | Quick Start Guide (Multilingual) |
| TREX-0049-0001 | Resource DVD(5) |
| Emerson AMS Trex Device Communicator | Emerson trex Device Communicator |
| Emerson AMS | Emerson trex communicator |
| Emerson AMS Trex | Emerson trex device |
| Emerson AMS Trex Device | Emerson trex |
| AMS Trex Device Communicator | Trex device communicator |
| Trex Device Communicator | Trex device |
| Device Communicator | Trex communicator |
